Contact-Optima-Profiles

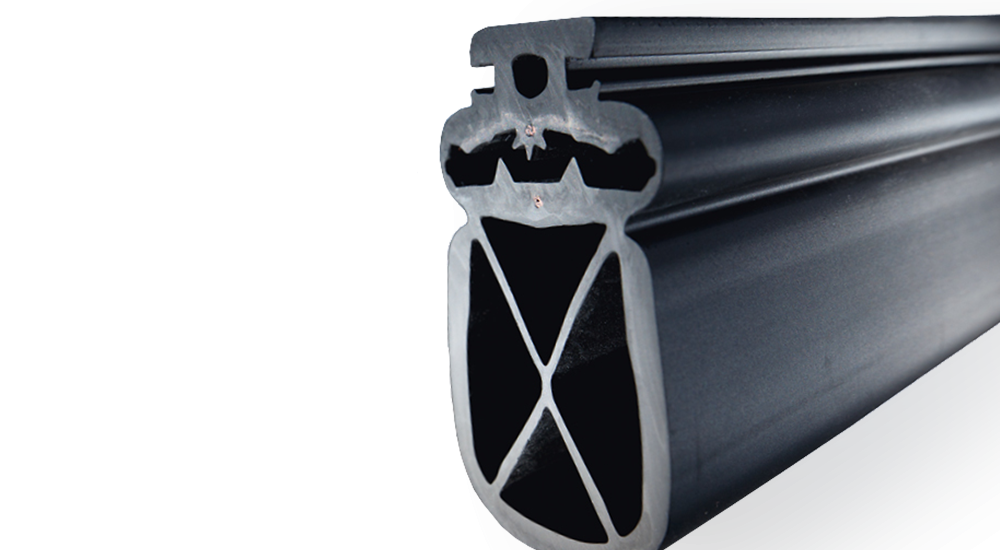

Innovative sensitivity! The essential feature of the Contact-Optima-Profile is its profile geometry, which provides both its exceptionally high sensitivity and its expanded response angle of ±90°.

It’s all in the blend! Innovative EPDM and NBR blends offer you the advantages of increased resistance to media and improved temperature behaviour. A range of different installed heights and materials enables you to adapt the Contact-Optima-Profile to your specific requirements.

Nothing could be easier! With their crimp connection, the Optima-Plus connectors make installation easy and reliable – with standard tools available at every jobsite. Complete the entire installation with speed and precision in just three steps – from the cutting of the compensation chamber to inserting the blue inner section of the cap into the switching chamber to gradually tightening the screws by alternating in turns in order to draw the rubber end cap into place – all without having to apply any glue to the switching chamber whatsoever!

Your Contact for reliable operation! Since the Contact-Optima-Profile complies with the standards of IP 66, 67 and 69K (DIN 40050-9), it meets demanding leak-tightness requirements. The connection system comprises the end cap with a resistance of 8.2kΩ, the electrical safety strip termination, and the end cap with different cable lengths and cable outlets to the C-rail and the compensation chamber, each of which is supplied together with an inner section and the corresponding M3x20 mm Torx screws. The connection system is made of material which remains extremely strong, hard and stiff over a wide range of temperatures. Use the end cap with its circumferential edge made of EPDM and NBR to close the compensation chamber at the end of the safety strip.
